The Original Stainless Steel trench grate solution for every application.
We offer a complete line of high-quality and durable stainless steel trench grates for varied uses. We have been the trusted name in the industry for decades and stand by every product we make in our facilities.
As the name suggests, Ideal Drain is suited to just about any internal or external application. All our products are designed and made in Australia and up to Australian Standards. Ideal Drain products are crafted from the highest quality stainless steel to ensure compliance and quality. Heelguard offers standard-size options, or we can customize the system to suit your specific project needs.
Channel Options
Grates & Inserts
Downloads
Application Photos
Channel Options
| Ideal Drain Channels | Part Number | Material | Width (mm) | Depth (mm) |
|---|---|---|---|---|
 |
ID50 | 304 | 50 | 20-50 |
| |
ID50/316 | 316 | 50 | 20-50 |
| |
ID80 | 304 | 80 | 20-50 |
| |
ID80/326 | 316 | 80 | 20-50 |
| |
ID100 | 304 | 100 | 20-50 |
| |
ID130 | 304 | 130 | 20-50 |
| |
ID100/316 | 316 | 100 | 20-50 |
| |
ID130/316 | 316 | 130 | 20-50 |
| |
ID150 | 304 | 150 | 20-50 |
| |
ID150/316 | 316 | 150 | 20-50 |
| |
IDCUS | 304 | CUSTOM | CUSTOM |
| |
IDCUS/316 | 316 | CUSTOM | CUSTOM |
Grates & Inserts
Heelguard Wedgewire Grating Options
Standard Finish Options are available in Powdercoat and Plating
| Ideal Drain Channels | Part Number | Material | Width (mm) | Slip Rating |
|---|---|---|---|---|
 | UNILINE | 5 | 5 | R9 |
 | ECONOLINE | 3 | 5 | R9 |
 | SAFELINE | 5 | 5 | R12 |
 | BROADLINE | 5 | 3 | R9 |
| | FINELINE | 3 | 3 | R9 |
Heelguard Insert and Custom Grating Options
Standard Finish Options are available in Powdercoat and Plating
| Ideal Drain Channels | Part Number | Material | Width (mm) | Depth (mm) |
|---|---|---|---|---|
 | TILELINE | NA | 5 | REFER TILE |
| SLOTLINE | NA | 6 or 10 | NA | |
 | DESIGNER | NA | CUSTOM | R9 |
Downloads
| Description | |
|---|---|
| Ideal Drain – Tech Data | Download |
| Ideal Drain – Installation Detail | Download |
| Ideal Drain (Tile Insert) – Installation Detail | Download |
| Revit Files | Download |

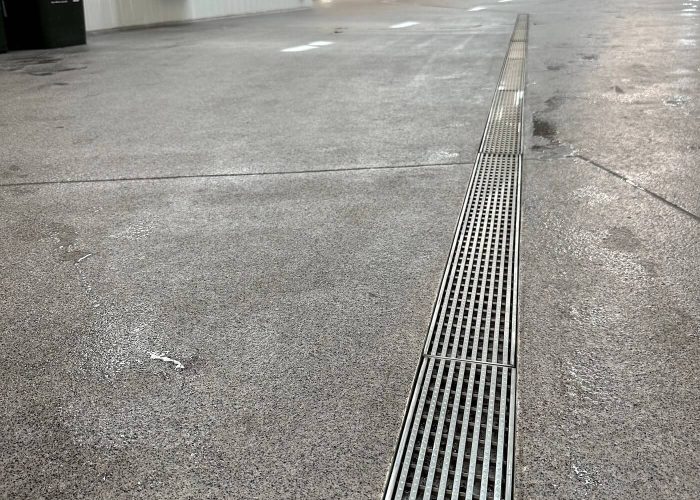

Application Photos
Key Features of Heelguard Ideal Drain
Appearance
Apart from the functional purpose, our stainless steel grates are designed with aesthetic styles and look. It allows you to improve the surroundings of your drainage systems with grates that add to the decorative element. Heelguard offers a variety of styles and designs as well as sizes for different requirements. All our grating systems can be customized according to your specific needs and purposes.
Corrosion & Chemical Resistant
Corrosion is one of the main problems within commercial areas like food and beverage, steel, chemical, water wastewater, power and others. Our grates are designed to provide long-lasting, safe and maintenance-free solutions insuch a harsh environment where chemicals and other materials can lead to corrosion. Made of the highest quality stainless steel, our grates do not rust or scratch off.
High Strength/Weight
Heelguard gratings are manufactured of high-quality stainless steel with high tensile strength compared to other metals. It can easily withstand heavy weight and pressure and are strong enough for a variety of industrial applications. However, our gratings are also easy to remove and install without needing any heavy equipment, thus helping reduce manual handling risks.
Slip Resistant
Falls and slips are major hazards that can cause injuries. Heelguard grating solutions are slip resistant due to the raised surface of metal grates and galvanized surface treatments. The grooves and the edges of our grates give people footholds in wet and slippery places and prevent them from slipping. In addition, dirt and debris do not collect on the platforms,which often leads to accidents.
Maintenance Free
Once you install our grates, you are going to forget about it. Heelguard grates are easy to clean and do not deform under impact. The open mesh allows debris to fall through the grating panel preventing a dirt buildup on the walking surface. Being corrosion-resistant, it eliminates the need for constant painting and upkeep.
Hygienic & Sanitary
One of the biggest benefits of our stainless steelgrates is that they help you maintain a hygienic environment. Our grates are designed for easy and convenient cleaning, and there is no place to hide dirt and waste. It prevents the growth of infectious contaminants in the grating system. Thus, stainless steel grates are perfect for salons, commercial kitchens, food processing factories and even hospitals.
Where Are Heelguard Grating Solutions Used?
All of the above features of our grates mean that our product has a broad appeal. Heelguard works every day to provide grating solutions to difficult engineering and design challenges. The modern design and reliable functionality make are grating solutions perfect for all types of places. As we become aware of the needs of our clients, our grating ranges continue to expand to meet the growing demand.
Some of the top places they are used include:
- Bathroom
- Domestic Wet Areas
- Pool Areas
- Commercial Kitchens
- Public Buildings
- Sports Arenas
- Warehouses
- Pedestrian Walkways
- Waste Treatment Facilities
- Marine Vessels
- Industrial Establishments
- Livestock Facilities
- Transport Terminals
We’re Here to Help!
At Heelguard, we are committed to providing you with the highest quality products and the one that is right for your needs. Our team is always available to assess your needs in a grating system, taking into consideration the weather, pedestrian traffic, water management, aesthetic needs, and other factors. We offer custom grating designs and options for you to choose from. With the right advice on grating or inserts, the finished product will be stylish and functional.
Call us today to talk about our grating solutions!
