CLICK DRAIN® 200 by Heelguard

Welcome to CLICK DRAIN®

A “grate” innovation to service the drainage market using seamless technology. Designed by drainage experts, CLICK DRAIN®,
developed using PAIGE STAINLESS HEELGUARD® is a full stainless steel drainage system. Superseding existing, dated methods and
materials currently used in the civil linear drainage. Use this centuries old technology for ease of onsite fitting, reduced transport
costs, safety and labour costs. The system utilises the popular 300 series stainless steel, mainly A.LS.I grade 304 and 316 stainless
steel into a multi form drainage channel using heelguard enhanced water flow grates, they are a chemical resistant, lightweight and
timeless material selection.

Benefits

The Future of Plumbing!

2 & 1 Metre Channel Lengths
For faster and more accurate install procedures.
Lightweight compared to traditional polymer or concrete drain sections.

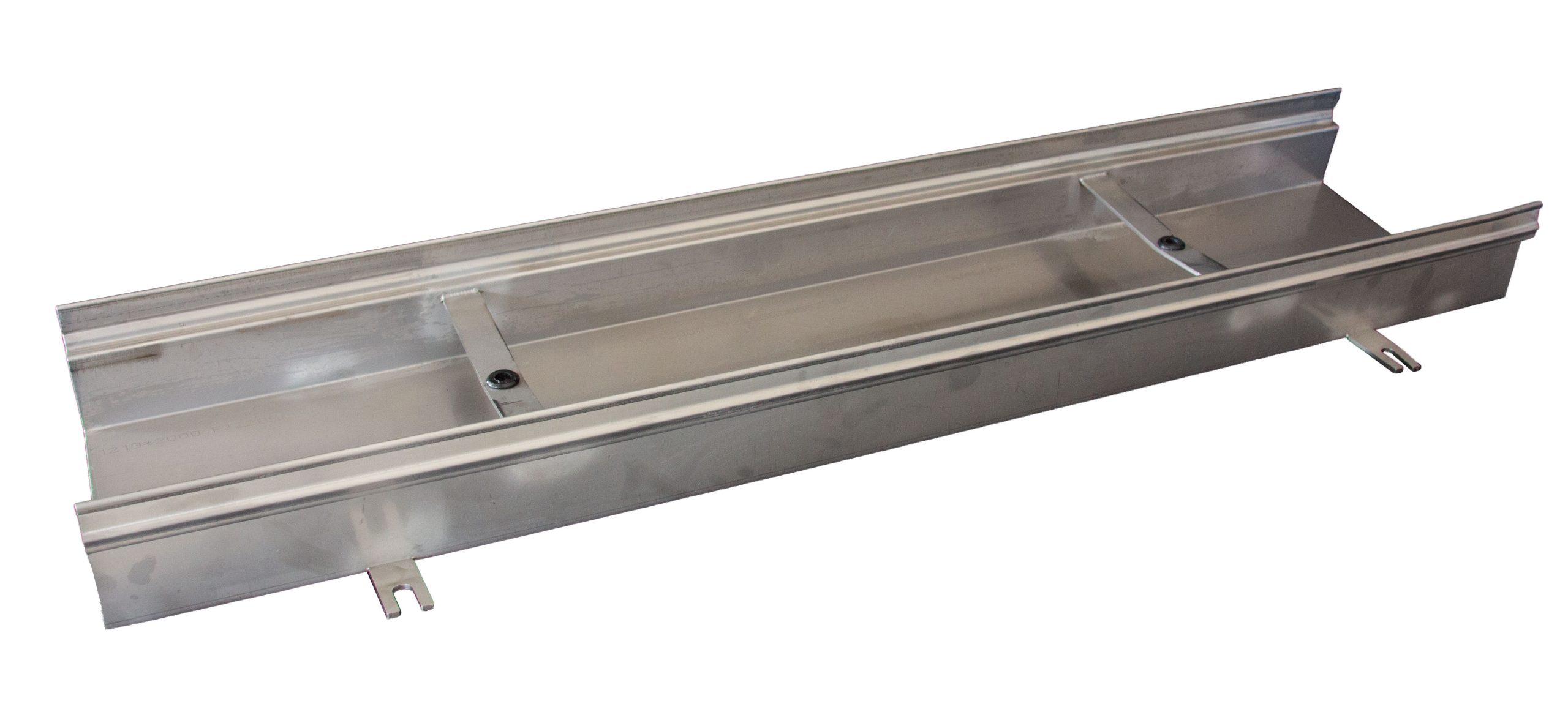

• Tray with HEELGUARD
Channel lengths do not crack or shatter when dropped.
Revolutionary ‘click’ together channel lengths and components.

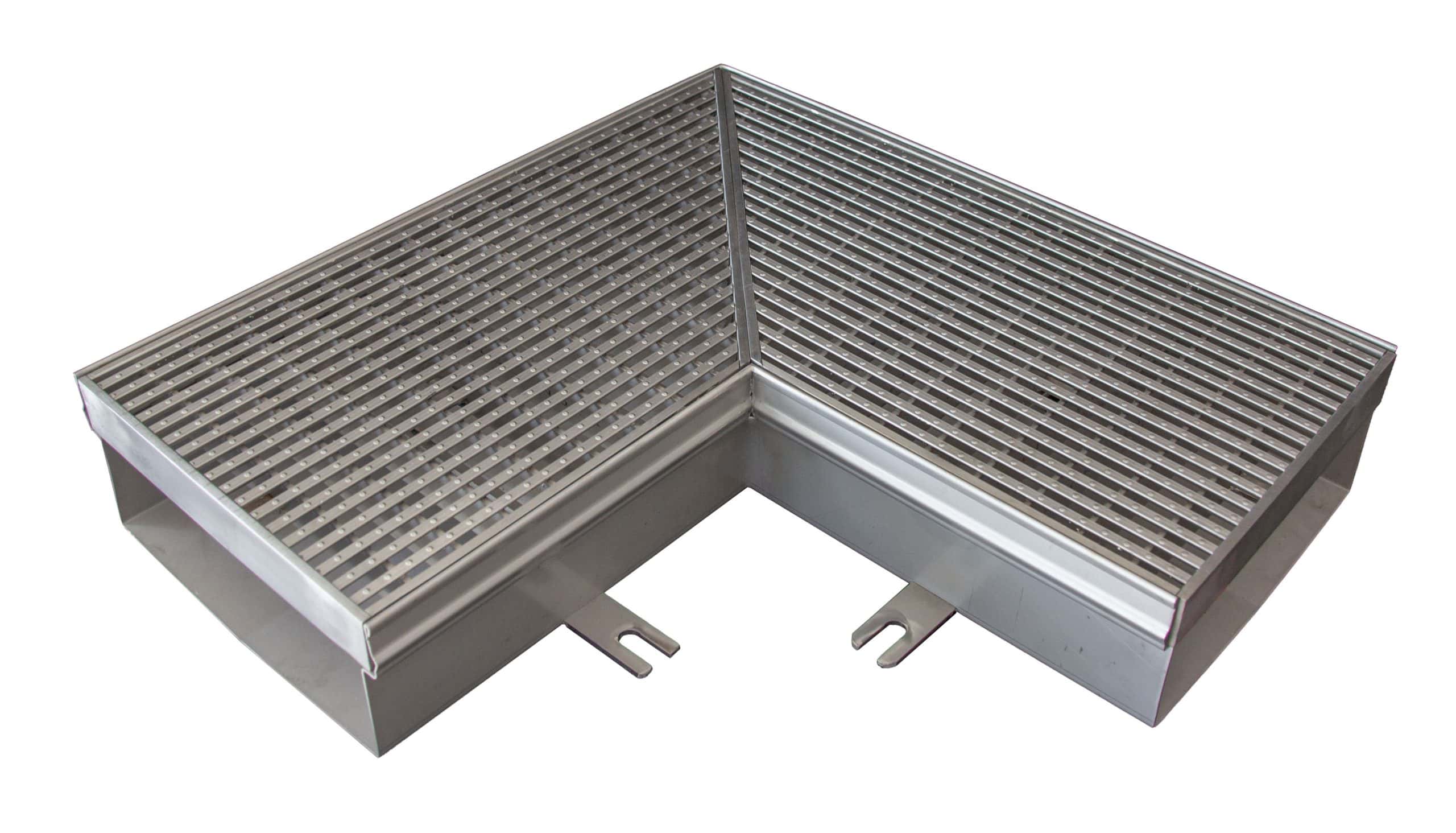

90° & 45° Corners
90-degree and 45-degree sections are standard for change of direction.

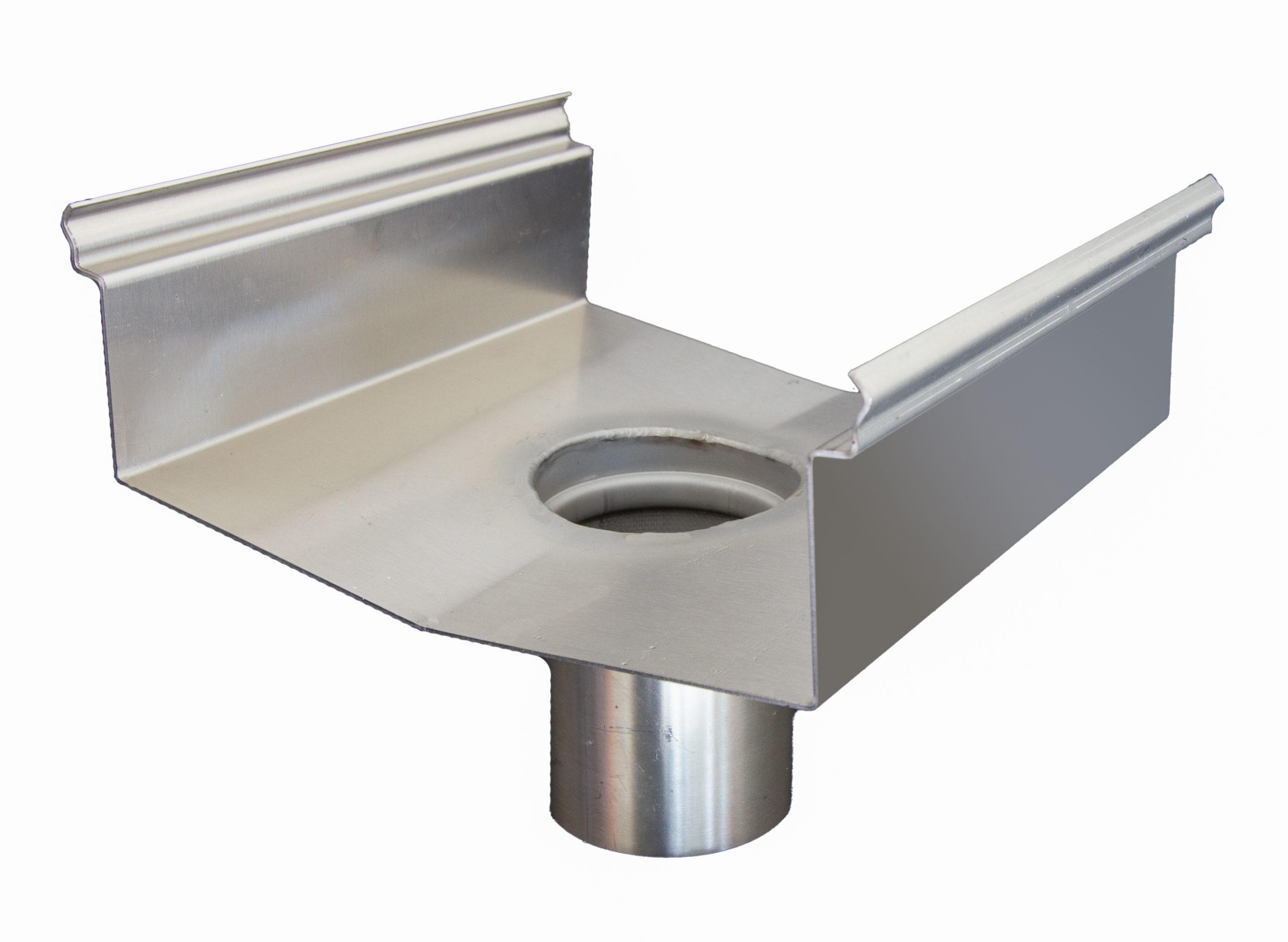

Outlet
Able to be cut using conventional tools, standard hole saws, and inert cutting disc materials that are not harmful to the environment.

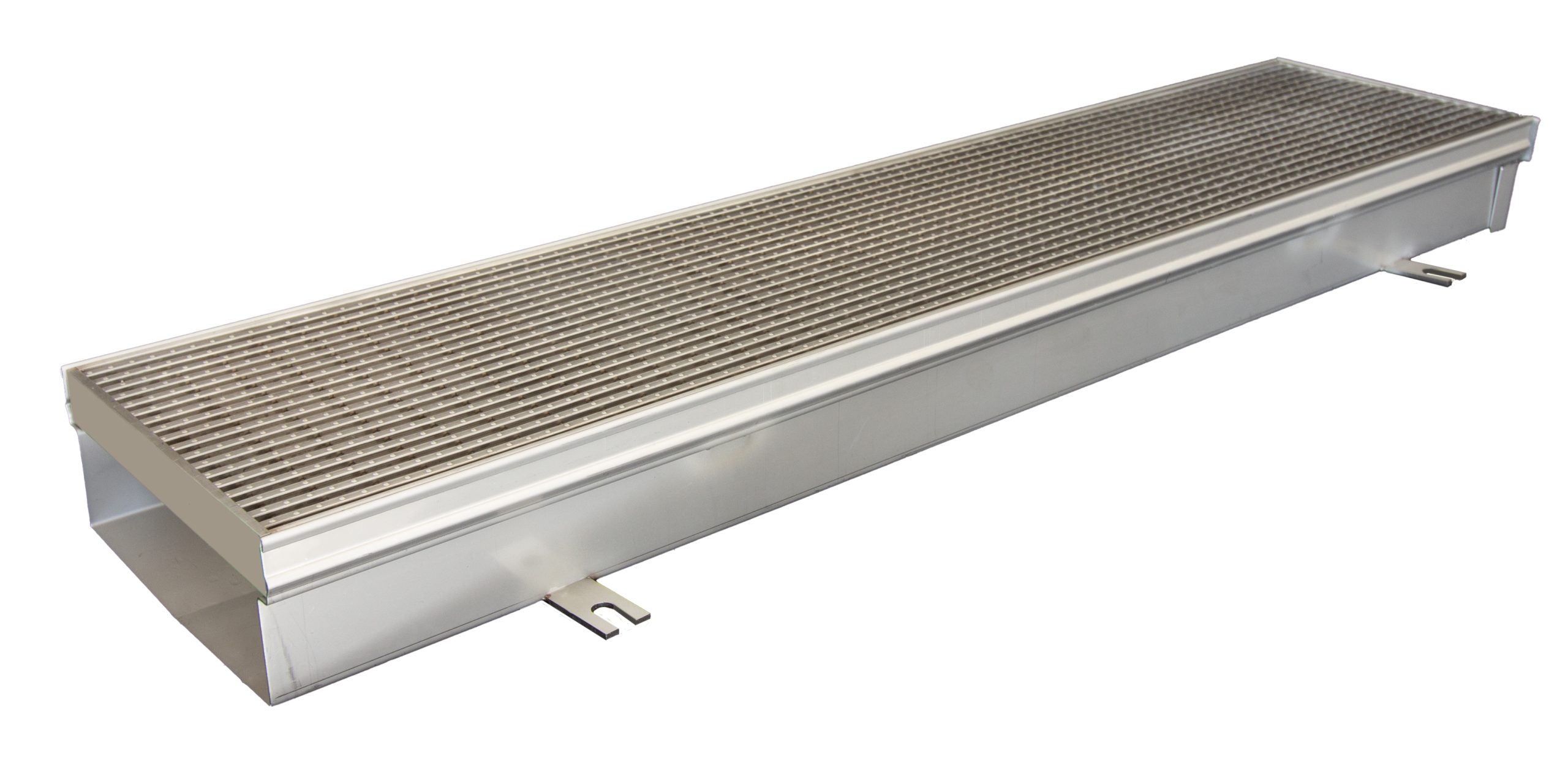

Tray with Pressed Grate Option

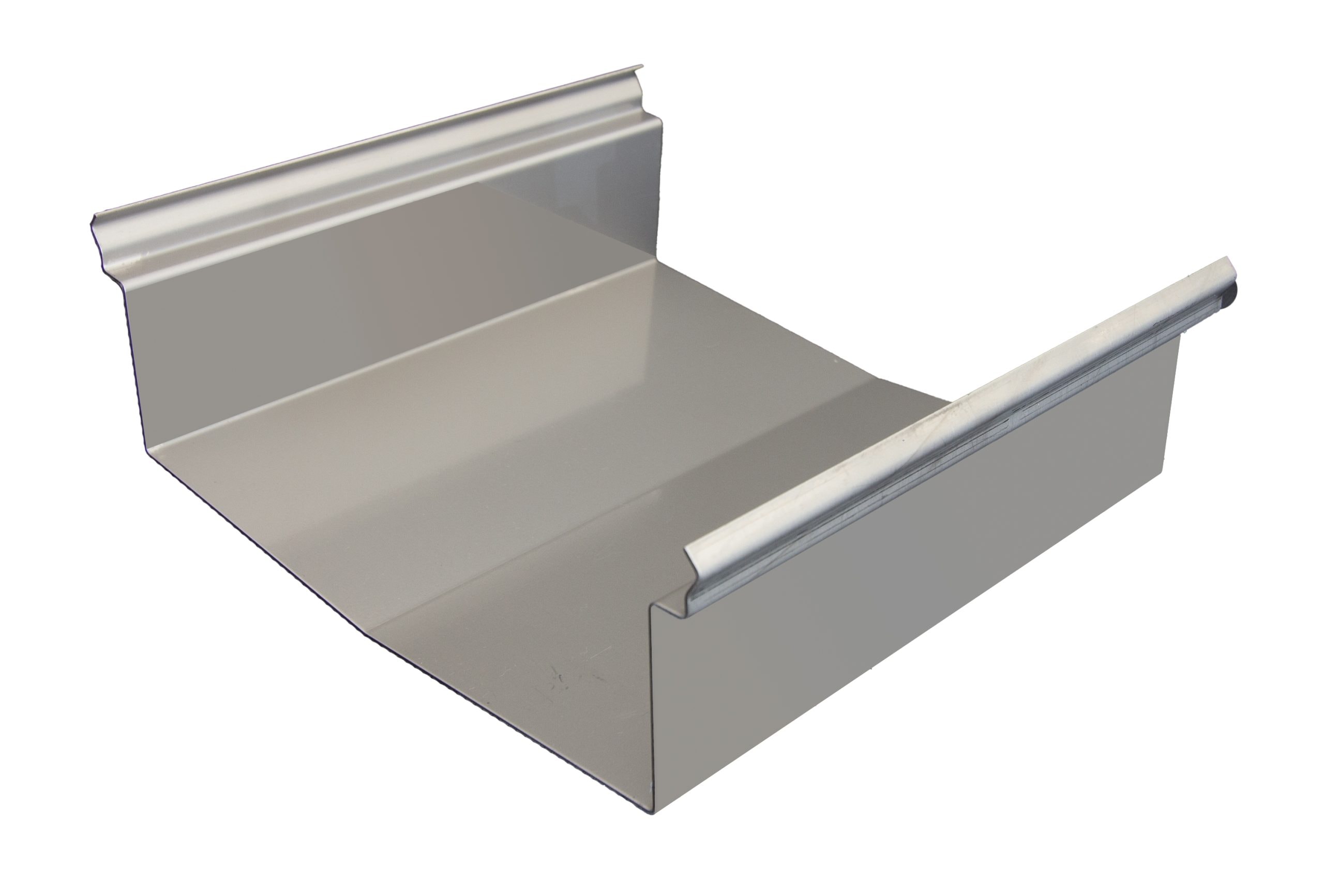

Joiner Section
End Cap
Drain terminating ends are simply clicked on.

Standards Compliance:

Surface openings in pedestrian areas (AS3996)
Slip resistance | Wet Pendulum Test (AS4586:P5)
Slip resistance | Wet-Barefoot inclining platform test (AS4586:C)
Slip resistance | Oil-Wet inclining platform test (AS4586: R11- Parallel) Slip
resistance | Oil-Wet inclining platform test (AS4586: R12 Perpendicular)
Wheelchair and walking cane safety (AS1428.2- Clause 9)
Bicycle tyre penetration resistance (AS3996- Clause 3.3.6)

Technical Data

Specifications

Channel Options

200 Series

Part Number

Material: 304
Length (mm): 2000
Depth (mm): 93
Tech Data

Material: 316
Length (mm): 2000
Depth (mm): 93
Tech Data

Material: 304
Length (mm): 1000
Depth (mm): 93
Tech Data

Material: 316
Length (mm): 1000
Depth (mm): 93
Tech Data

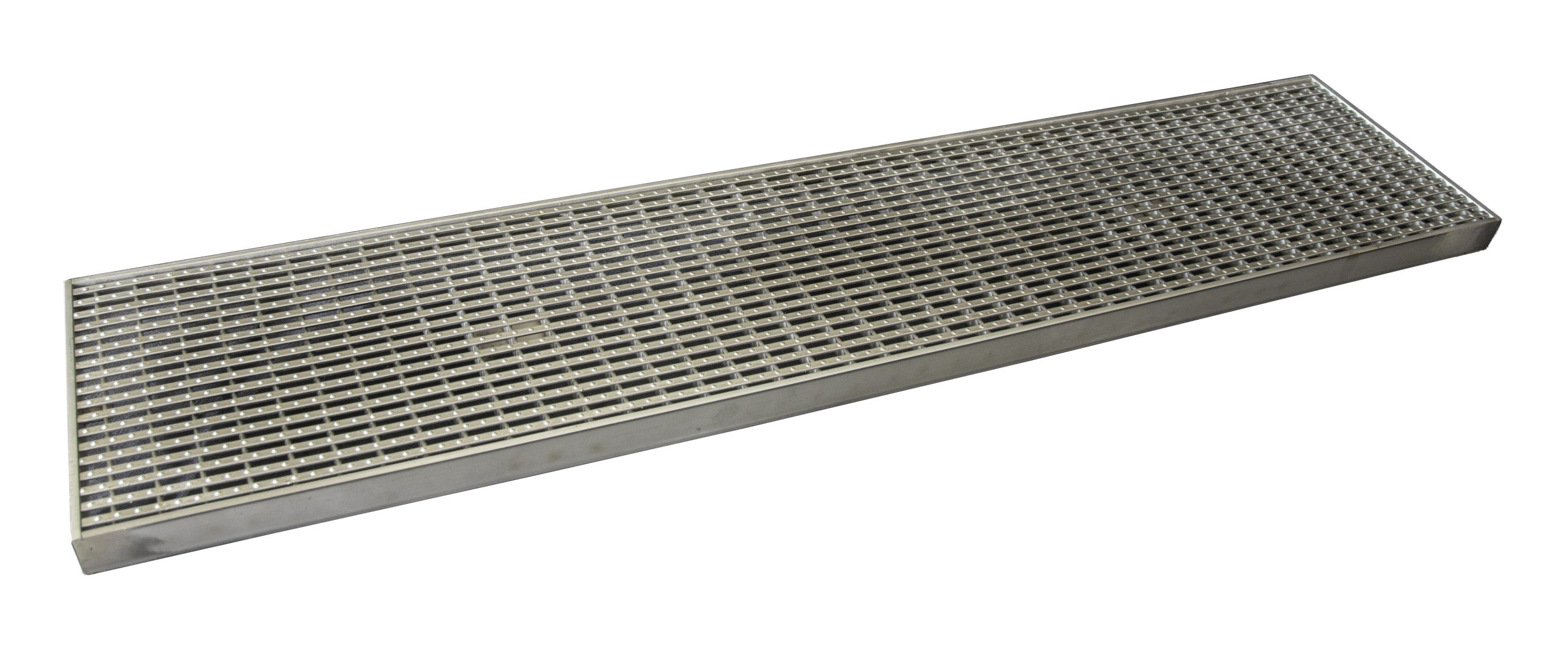

Grates & Inserts

200 Series (Discreet)

Part: DS3041A(200)

Material: 304
Length (mm): 1000
Tech Data

Part: DS3042A(200)

Material: 304
Length (mm): 2000
Tech Data

Part: DS3161A(200)

Material: 316
Length (mm): 1000
Tech Data

Part: DS3162A(200)

Material: 316
Length (mm): 2000
Tech Data

Part: DS3041B

Material: 304
Length (mm): 1000
Tech Data

Part: DS3042B

Material: 304
Length (mm): 2000
Tech Data

Part: DS3161B

Material: 316
Length (mm): 1000
Tech Data

Part: DS3162B

Material: 316
Length (mm): 2000
Tech Data

Part: DS3041C

Material: 304
Length (mm): 1000
Tech Data

Part: DS3042C

Material: 304
Length (mm): 2000
Tech Data

Part: DS3161C

Material: 316
Length (mm): 1000
Tech Data

Part: DS3162C

Material: 316
Length (mm): 2000
Tech Data

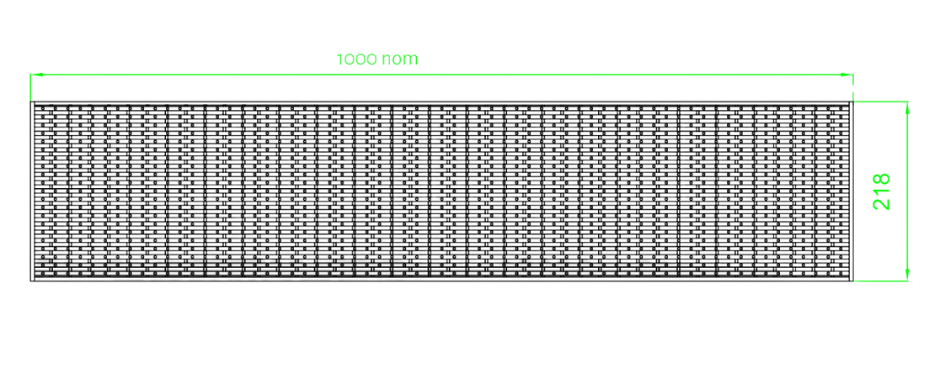

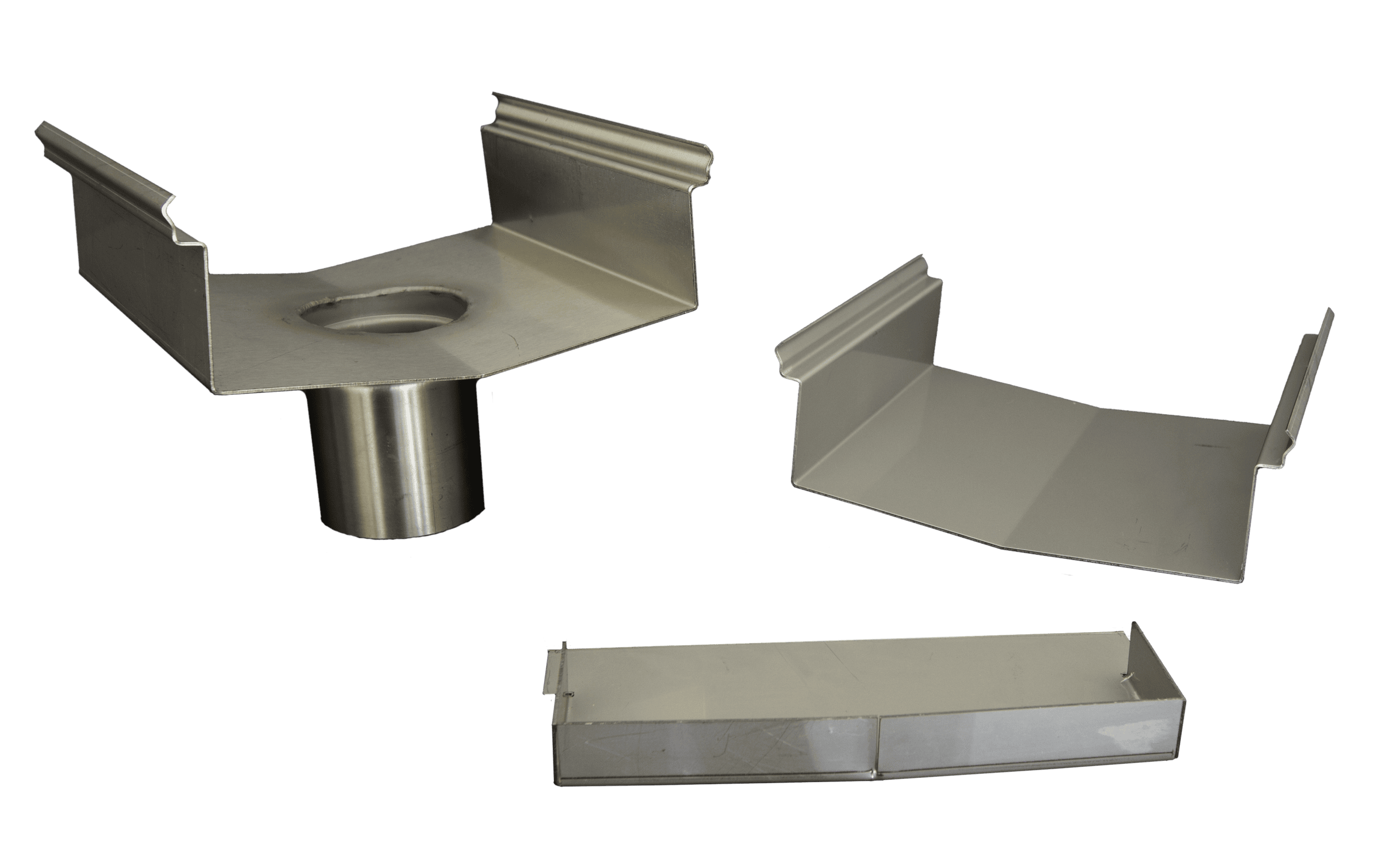

Accessories

100 Series

200 Series: N/A

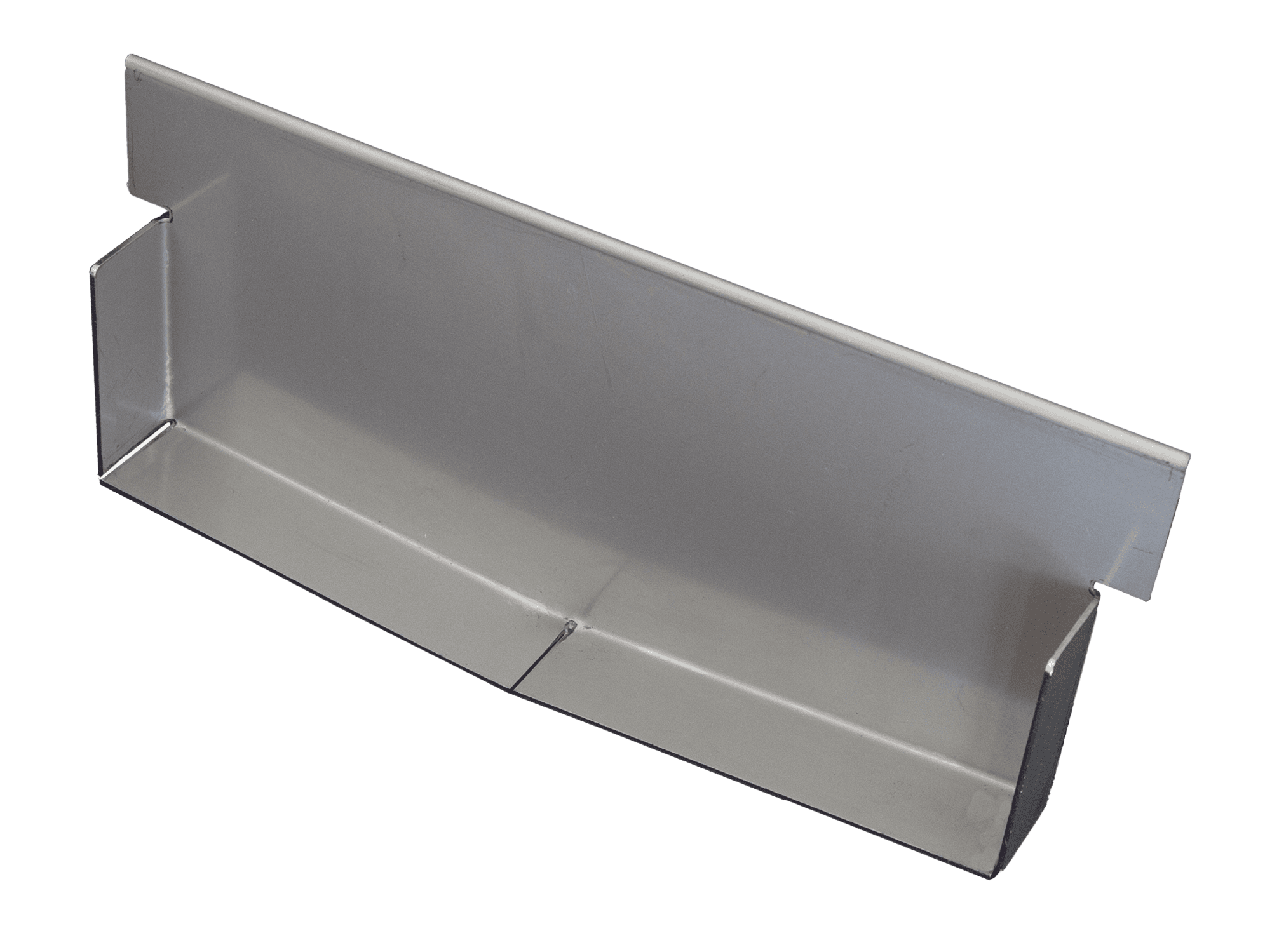

Description:End Cap
Material: UV Stabilised ASA

200 Series: N/A
Description: End Cap
Material: Grade 316 Stainless Steel

200 Series: SS75SPIG
Description: Outlet 75mm
Material: Grade 316 Stainless Steel

200 Series: SS75SPIG
Description: Outlet 100mm
Material: Grade 316 Stainless Steel

200 Series: SS75SPIGRGFS
Description: Fixed Strainer Outlet 75mm
Material: Grade 316 Stainless Steel

200 Series: SS100SPIGRGFS
Description: Fixed Strainer Outlet 100mm
Material: Grade 316 Stainless Steel

200 Series: SSBSKT
Description: Removable Strainer
Material: Grade 316 Stainless Steel

200 Series: JOIN-200
Description: Joiner
Material: Grade 316 Stainless Steel

200 Series: CDSUPLEG-200
Description: Channel Support
Material: Grade 316 Stainless Steel

200 Series: N/A
Description: Outlet
Material: UV Stabilised ASA

200 Series: 90C-200
Description: 90 Degree Corner
Material: Grade 316 Stainless Steel

200 Series: 45C-200
Description: 45 Degree Corner
Material: Grade 316 Stainless Steel

200 Series: CDSUPLEG-200
Description: Channel Support
Material: Grade 316 Stainless Steel

Downloads

Download

Illustration
