OVERVIEW

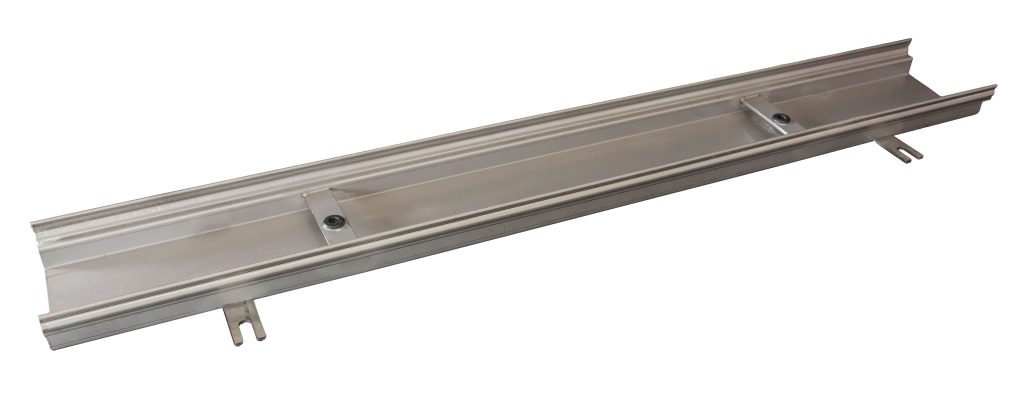

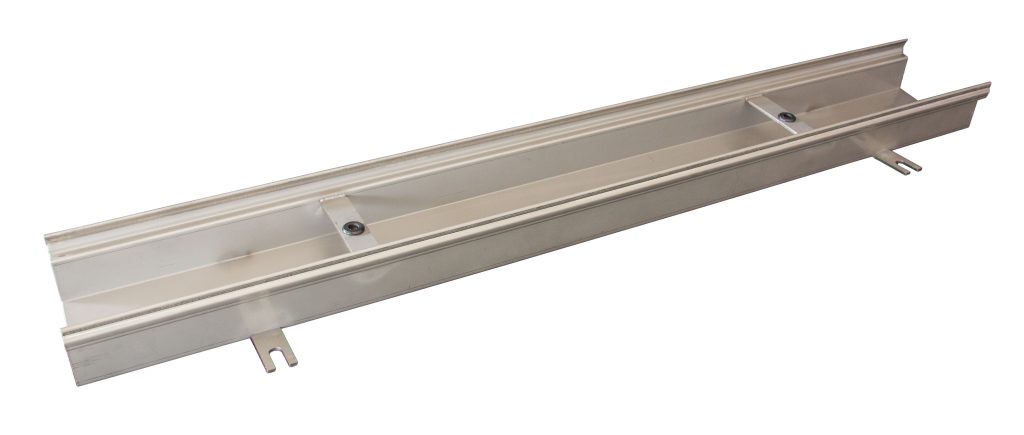

CLICK DRAIN® – Drainage Channels

Our drainage channels form the primary path for water collection and transport. Available in various widths and lengths, they are versatile, durable, and lighter than traditional polymer concrete alternatives, making them an ideal choice for a wide range of applications.

FEATURES

The Advantage

Efficient water collection and transport
Available in 1 or 2-meter lengths; can be cut with conventional tools
Modular design for customizable configurations
Lighter than polymer concrete, easier to handle and install
Click-fit connections for seamless assembly
Suitable for various load classes when combined with appropriate grating
Made from high-quality 304/316 stainless steel

WHERE USED

Perfect for Drain Layouts That Need

SPECIFICATIONS

Technical Specifications

Specifications	100mm Channel	200mm Channel
Clear Opening Width	100mm	200mm
Standard Lengths	1m, 2m (cuttable)	1m, 2m (cuttable)
Material	304 / 316 Stainless Steel	304 / 316 Stainless Steel
Installation Method	Click-fit system	Click-fit system
Load Class (with appropriate grating)	Up to Class D	Up to Class D

FAQ

Frequently Asked Questions

Can the drainage channels be cut to size?

Yes, our channels can be cut to the required length on-site using standard metal cutting tools, allowing for precise fitment.

What grates are compatible with the channels?

Our drainage channels are compatible with both Heelguard Grating and Stainless Pressed Grating, depending on the load requirements and application.

How do I ensure the channels can handle heavy loads?

By selecting the appropriate grating (e.g., Heelguard Grating for up to Load Class D), the channels can be configured to handle heavy vehicular traffic.

Click Drain

More Products

Joiner Sections

Seamless modular connection. Fast, rustproof assembly.

Learn more

Outlets

UPVC outlets make outlet positioning easy on site.

Learn more

End Cap

Channel terminating ends simply click into place.

Learn more

90 Degree Drain

90 deg and 45 deg sections are standard for change of direction.

Learn more
