OVERVIEW

CLICK DRAIN™ – Joiner Sections

Joiner Sections are the heart of the CLICK DRAIN™ modular system — snapping channels together precisely with no bolts, tools, or adhesives required. Proudly made in Australia, these stainless-steel joiners match our 100mm and 200mm channel systems and ensure durability in any plumbing or civil environment.

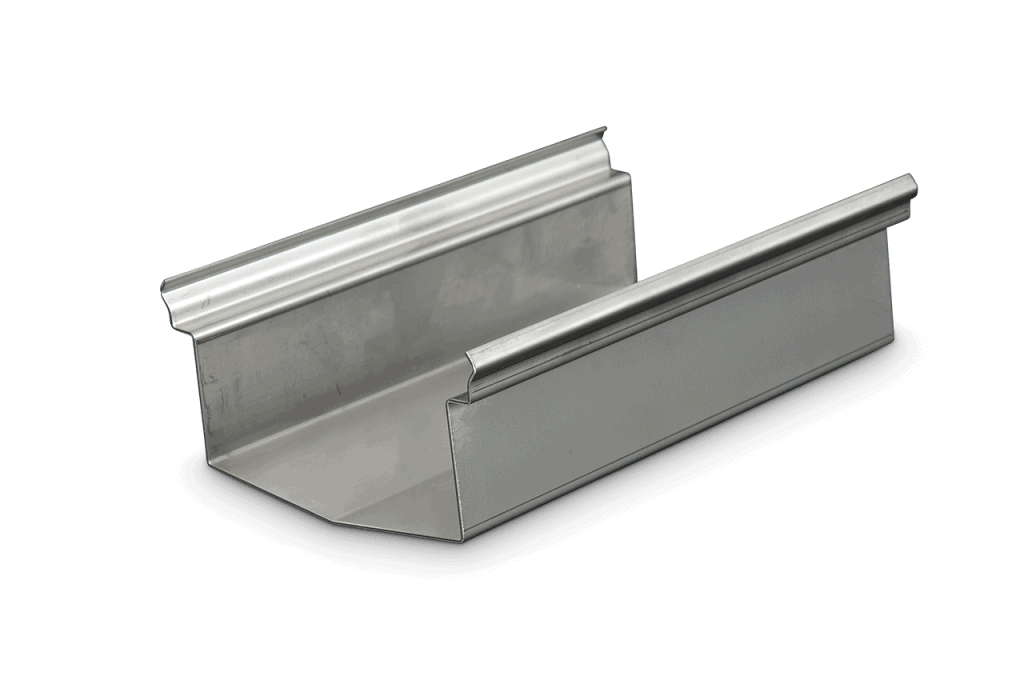

Click Drain Joiner
CD 100 Accessories 72 DEEP: JOINER **
FEATURES

The Advantage

  • Click-to-connect — no bolts or adhesives
  • Made in Australia using premium stainless steel (304 or 316)
  • Compatible with 100mm and 200mm channels
  • Fast install — save time on site with tool-free assembly
  • Strong and corrosion-proof — ideal for harsh Aussie conditions
  • GreenTag certified & ASSDA accredited
  • Hygienic and easy to clean
  • Complies with AS3996:2019 and AS4586 safety standards

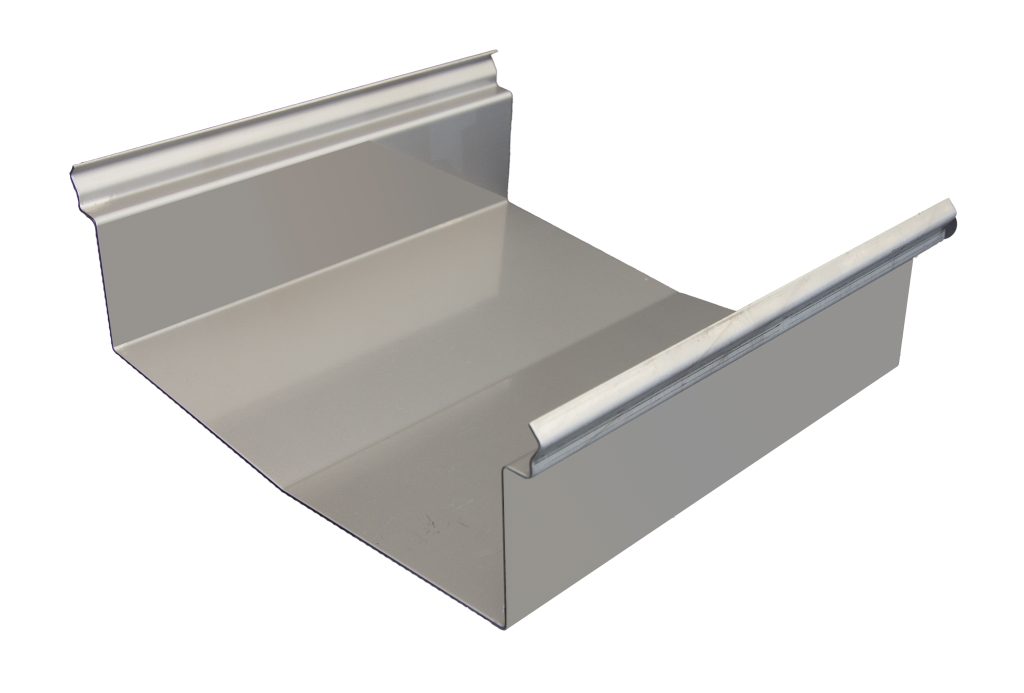

CD200 Joiner
CD 200 Accessories: JOINER

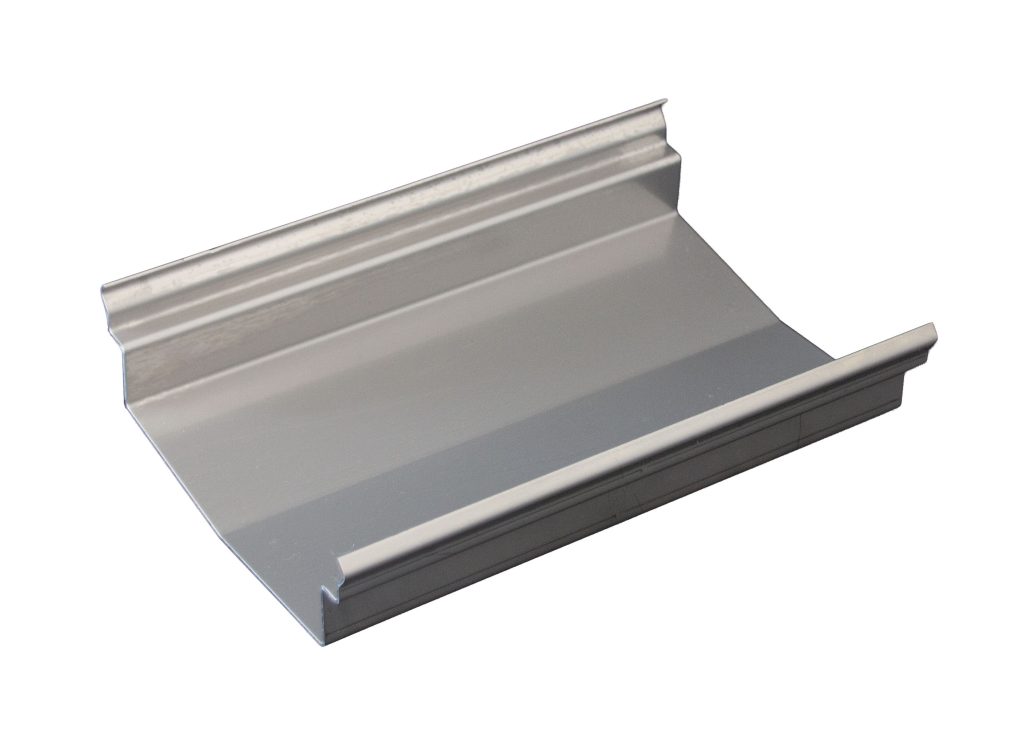

CD100 50 Join
CD 100 Accessories 50 DEEP: JOINER *
WHERE USED

Perfect for Drain Layouts That Need

Screenshot 2026 02 10 170848

Long, uninterrupted trench drain runs

ChatGPT Image Feb 10 2026 04 57 42 PM e1770714338973

Directional changes using 45° or 90° angles

Screenshot 2026 02 10 170834

Bolt-free connections for quick installation

Screenshot 2026 02 10 170901

Heavy-duty, corrosion-resistant materials for outdoor or industrial use

SPECIFICATIONS

Technical Specifications

Specifications 100 Series Joiner 200 Series Joiner
Channel Width
100mm clear opening
200mm clear opening
Material
304 or 316 Stainless Steel
304 or 316 Stainless Steel
Installation Method
Click-fit (tool-free)
Click-fit (tool-free)
Compatibility
Standard & Sump Configurations
Standard & Sump Configurations
Environmental Rating
AS3996:2019 + AS4586 Compliant
AS3996:2019 + AS4586 Compliant
VIDEO

Watch the Joiner Section in Action

No bolts, no mess, no wait. Watch how fast the CLICK DRAIN™ joiners lock channel sections together for long-run precision.

FAQ

Frequently Asked Questions

Installation is straightforward with our innovative click-fit mechanism. Simply align the joiner sections with the drainage channels and snap them into place without any tools or adhesives.



Our joiner sections are constructed from high-grade stainless steel (304 or 316), ensuring durability and resistance to rust and corrosion in harsh environments.



Yes, the CLICK DRAIN™ system is designed to withstand Australia’s extreme weather conditions, including heat, rain, and exposure to various chemicals.
